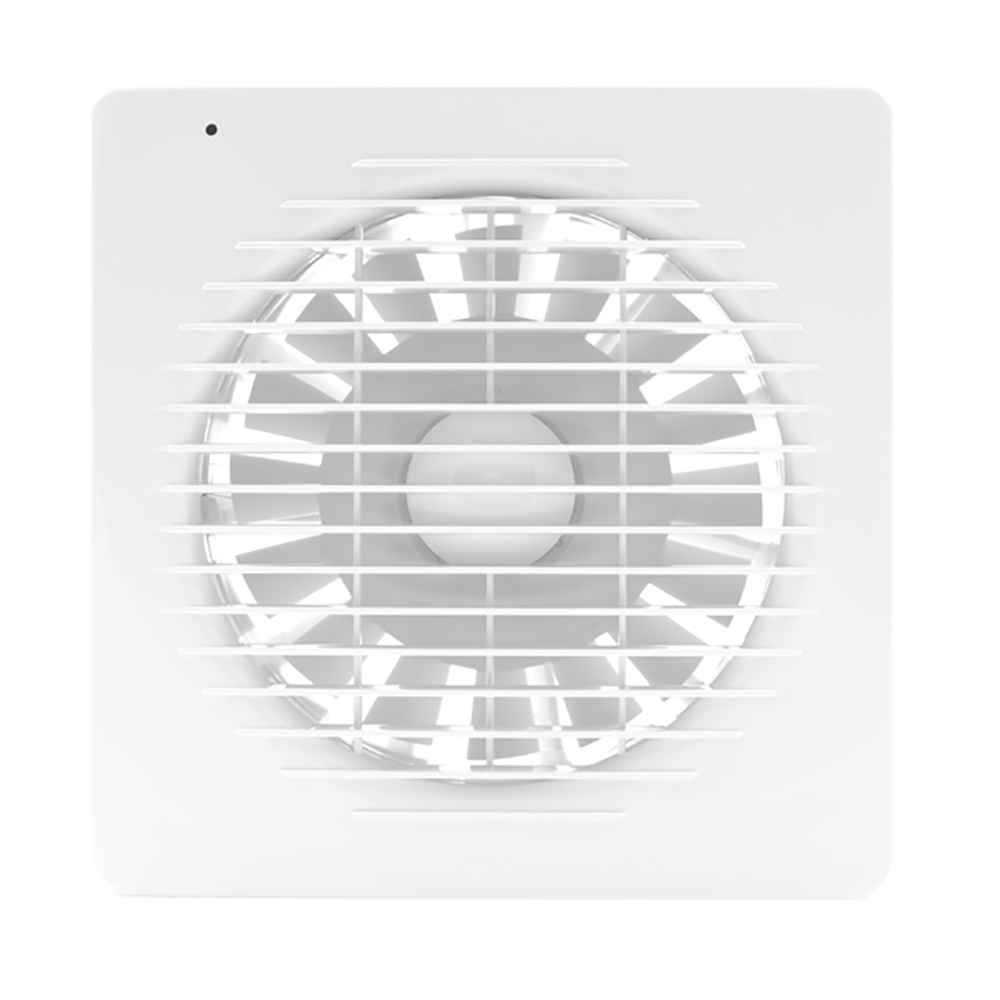

Dom Exhaust Fan 100mm With Shutter, Humidity Stat & Timer FANDOM-100CHT
Precio regular
€222.50
Precio de venta
€222.50
Precio regular
€0.00
Generar código QR
-
¡Envío gratis en pedidos superiores a $60!
Descripción del Producto
Reseñas de productos
Product Description
The Dom Series is a range of low cost, high performing and European made extract fans. They are reliable and well suited for domestic applications such as bathrooms, toilets and laundries.
| Model No. | Duct Size | A | B | CØ | D | E |
| Dom-100C | 100 |
158 |
168 |
99 |
82 |
20 |
All dimensions in mm
Product Features:
- Made from tough injection moulded plastic.
- Available in the 3 most popular spigot sizes; 100, 125 and 150mm.
- Low loss foil backdraft damper and “operating” light included.
- Front grille can be easily removed for cleaning.
- Internal thermal motor cut out protection.
- 230-240V, single-phase, 50Hz supply.
Technical Details:
- m³/hr: 95 (Air flow without duct and fittings)
- L/sec: 26 (Air flow without duct and fittings)
- Fan Speed rpm: 2500
- Avg. dB(A): 34
- Watts: 13W
- Volts: 230V
- IP Rating: IPX4
Dimensions:
- Height: 158 mm
- Width: 168 mm
- Cut-out: 99 mm
- Duct Size:100 mm
Brand & Design:
- Brand: Fantech Trade
- Collection: DOM
- SKU: FANDOM-100CHT
- Colour: White
Warranty:
- 2-year replacement warranty
This fitting must be installed by a licensed electrician.
