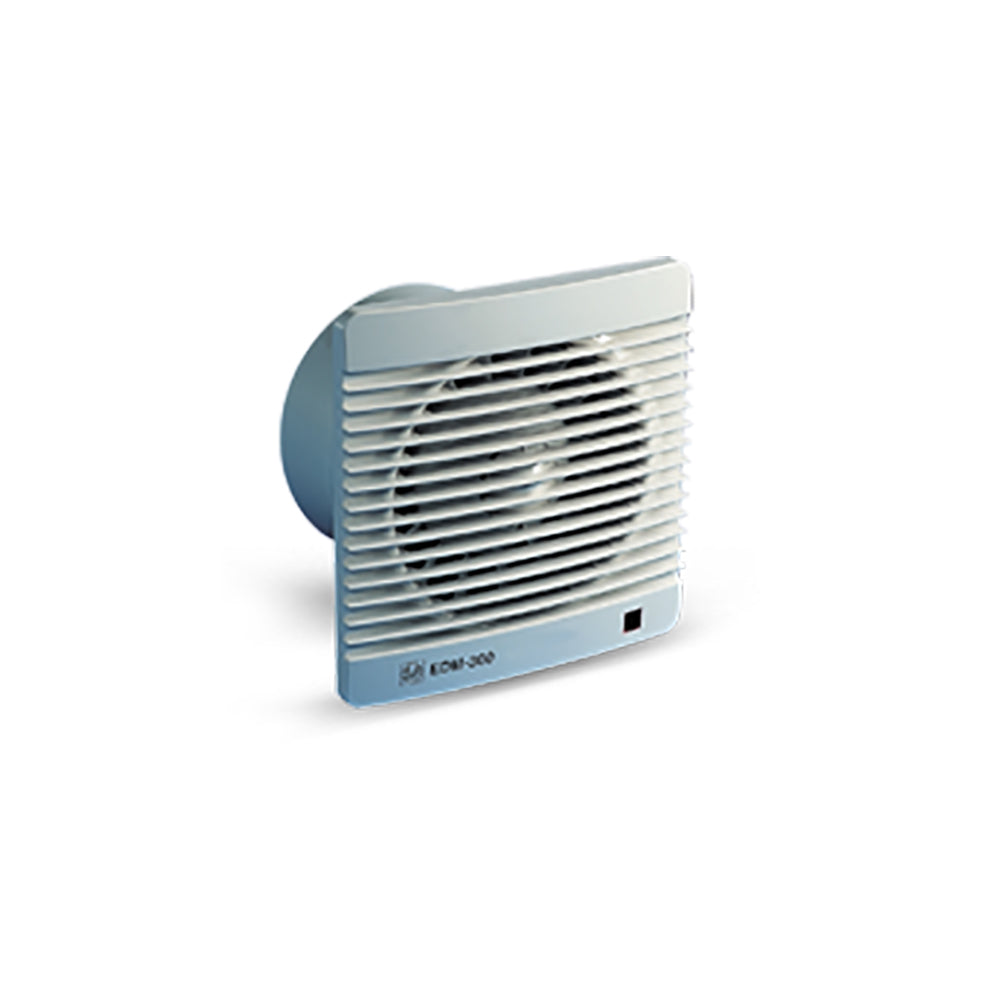

EDM Series Exhaust Fan 25W Spigot - EDM-200S
Precio regular
€239.00
Precio de venta
€239.00
Precio regular
€0.00
Generar código QR
-
¡Envío gratis en pedidos superiores a $60!
Descripción del Producto
Reseñas de productos
Product Description
- The EDM Series can be wall or ceiling mounted and is suitable for exhausting stale and moist air from homes, town houses and commercial buildings.
- Available in models to suit 100, 125 and 150mm duct sizes.
- The EDM-100 is also available in a 12V model suitable for caravans and mobiles homes.
Product Features:
- Includes a high quality mechanical backdraft shutter that prevents outside air entering building when fan is switched off (except EDM-100S, EDM-200S and EDM-300S models)
- The EDM-100 is also available in a 12V model suitable for caravans and mobiles homes
- ‘CT-4PL’ Range - Includes 8 minute run-on timer, shutters, and 4 pin plug and lead. Model EDM-200 only.
- ‘12V’ Unit - Suitable for wet areas (IPX7): requires a low-voltage transformer. Model EDM-100S-12V only.
- All models can be used to exhaust along a short length of duct. It is essential allowances be made for pressure losses in the duct to ensure air flows will meet
- the requirements of the application.
- 300 model features a slim line body.
- Grille can be easily removed for cleaning.
- All models, except the EDM-100S-12V, feature a pilot lamp.
- Class B motor, IP44 rated.
- Not speed controllable.
Technical Details:
- Operation Voltage: 240V
- Wattage: 25W
- Speed: 42 rps
- Motor Type: shaded-pole induction motor.
- Motor Electricity supply: single-phase 230V, 50Hz
- Bearings: Ball
- Maximum ambient temperature: 40°C
- IP Rating: IP44 (Class II insulatio )
- Usage: Outdoor

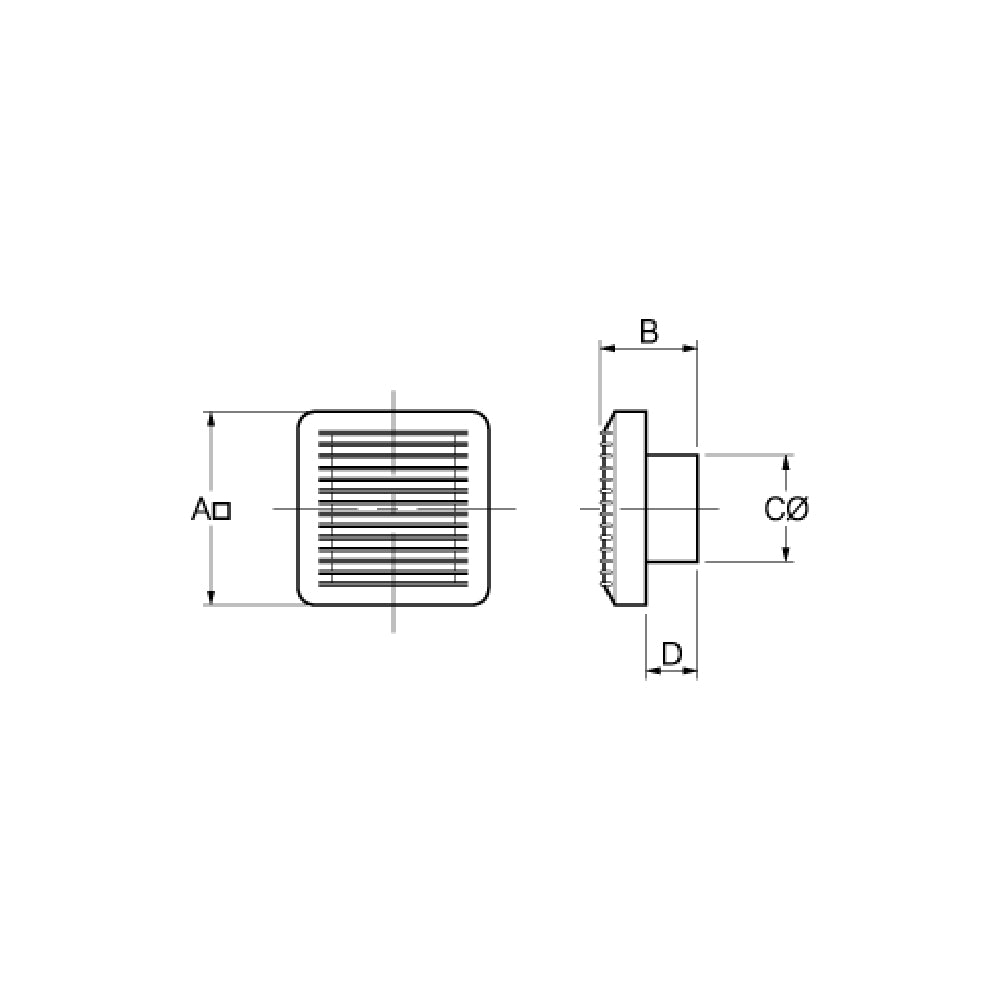

Dimensions:
- Width: 187 mm
- Depth: 62 mm
- Cut-Out: 119 mm
Brand & Design:
- Brand: Fantech Trade
- Collection: EDM Series
- SKU: EDM-200S
Warranty:
- 1-year replacement warranty
