Silent Design Wall Exhaust Fan 100mm With Timer And Humidistat White FANSILDES100CHZ3C-W
Precio regular
€241.00
Precio de venta
€241.00
Precio regular
€0.00
Generar código QR
-
¡Envío gratis en pedidos superiores a $60!
Descripción del Producto
Reseñas de productos
Product Description
The Silent Design Series exhaust fans bring style and elegance to the engineering brilliance of the Silent wall fan range. They feature an advanced vibration absorbing design to ensure quiet operation and powerful air flow performance.

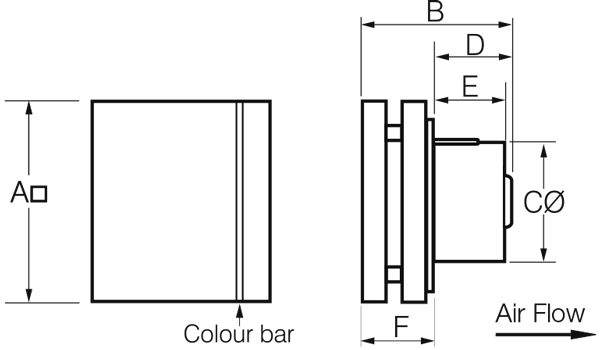

| Model No. | Duct Size | A | B | CØ | D | E | F |
| SILDES100.. | 100 |
188 |
130 |
99 |
85 |
79 |
45 |
All dimensions in mm

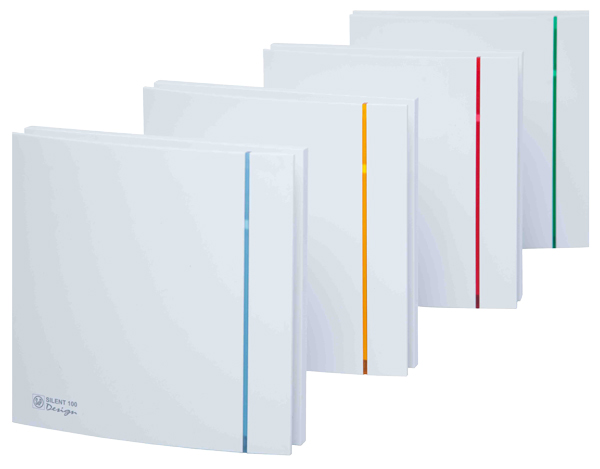

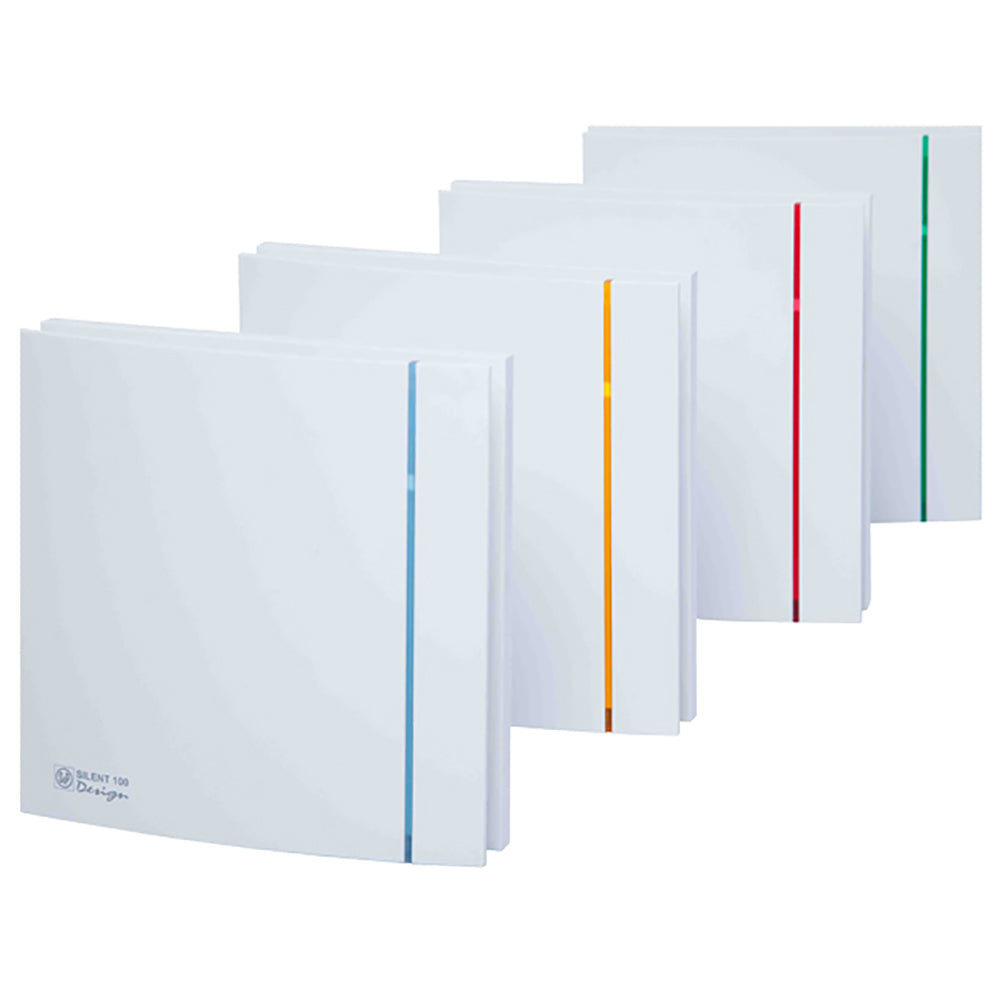

Interchanagable Colour Bars
The Silent Design can be customised with an interchangeable bar so your fan can blend in with any setting. Four colours to match the décor of the room: blue, red, green and yellow.
Product Features:
- Quiet operation due to its noise and vibration absorbing design.
- Comes with 4 interchangeable colour bars to match room décor.
- Low loss foil backdraft damper is standard on all models.
- 1-30 minute adjustable run-on timer and adjustable humidistat are available on selected models.
- Internal thermal motor cut out protection.
- 220-240V, single-phase, 50Hz supply.
Technical Details:
- Backdraft Damper: Yes
- Run-on Timer: Yes
- Humidistat: Yes
- m³/hr: 85 (Air flow without duct and fittings)
- L/sec: 23 (Air flow without duct and fittings)
- Fan Speed rpm: 2100
- Avg. dB(A) @ 3m: 27
- Watts: 8W
- Volts: 230V
- IP Rating: IP45
Dimensions:
- Height: 188 mm
- Width: 188 mm
- Cut-out: 99 mm
- Duct Size:100 mm
Brand & Design:
- Brand: Fantech Trade
- Collection: Silent Design
- SKU: FANSILDES100CHZ3C-W
- Colour: White
Warranty:
- 5-year replacement warranty
This fitting must be installed by a licensed electrician.
