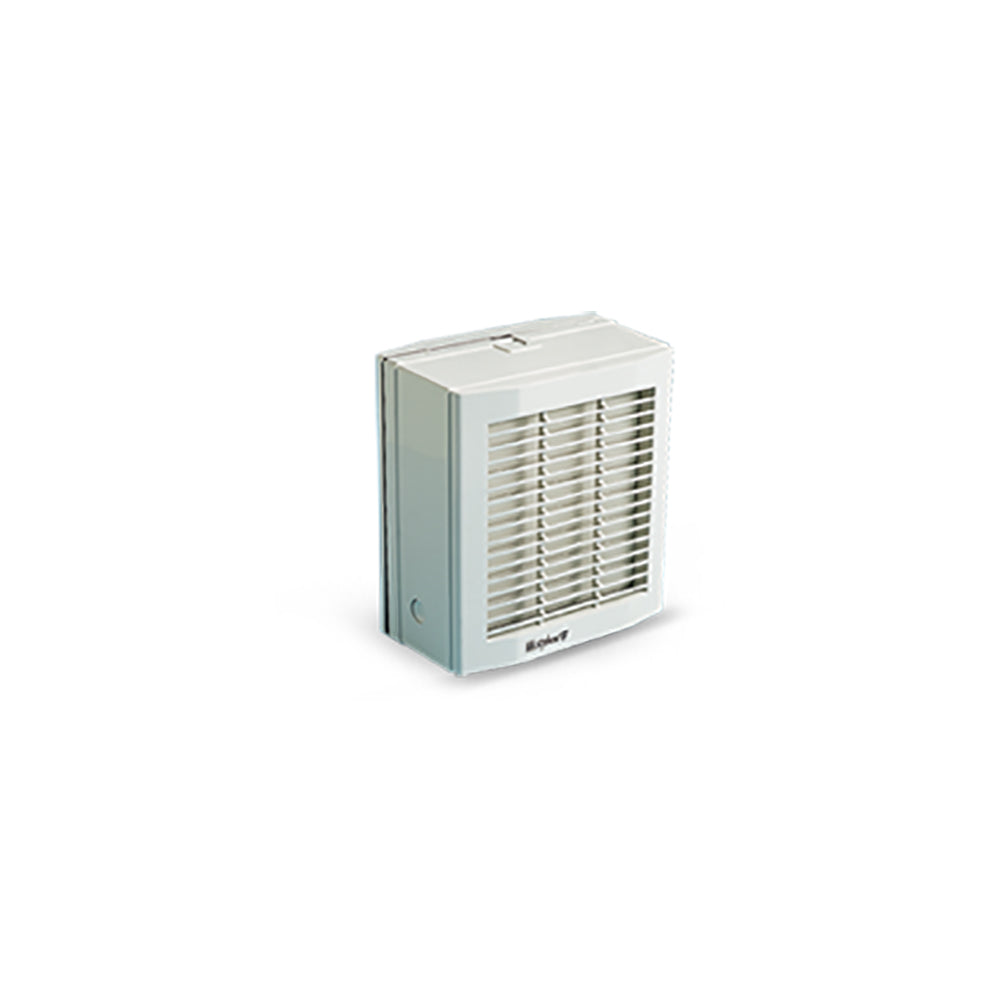

Stylvent Series Exhaust Fan 30W Single Speed - HV-150AE
Precio regular
€244.00
Precio de venta
€244.00
Precio regular
€0.00
Generar código QR
-
¡Envío gratis en pedidos superiores a $60!
Descripción del Producto
Reseñas de productos
Product Description
- The Stylvent Series can be wall or window mounted and is suitable for a wide range of applications.
- The 230 and 300 models can be wired for exhaust or supply mode or dual purpose using an optional reversing switch.
Product Features:
- Available in 3 sizes for 230V supply.
- Models 230 and 300 are suitable for supply or exhaust applications. Model 150
- is suitable for exhaust only.
- For applications requiring both supply and exhaust a reversing switch isavailable.
- Electric shutters prevent outside air entering building when fan is switched off.
- IPX4 rated.
- Tough and long lasting ABS plastic.
- Maximum ambient of 40°C.
- Optional weather Cap for protection against harsh external conditions.
- For wall mounting, a kit of threaded “wall rods” and sleeves can be supplied as
- an optional extra. Caters for walls ranging in thickness from 25 to 300mm
Technical Details:
- Operation Voltage: 240V
- Wattage: 30W
- Speed: 39 rps
- Motor Type: the HV-150 is shaded pole and the HV-230 and 300 are external rotor motor.
- Motor Electricity supply: single-phase 230V, 50Hz.
- Bearings: sleeve
- Maximum ambient temperature: 40°C
- IP Rating: IPX4 (Class II insulatio )
- Usage: Indoor

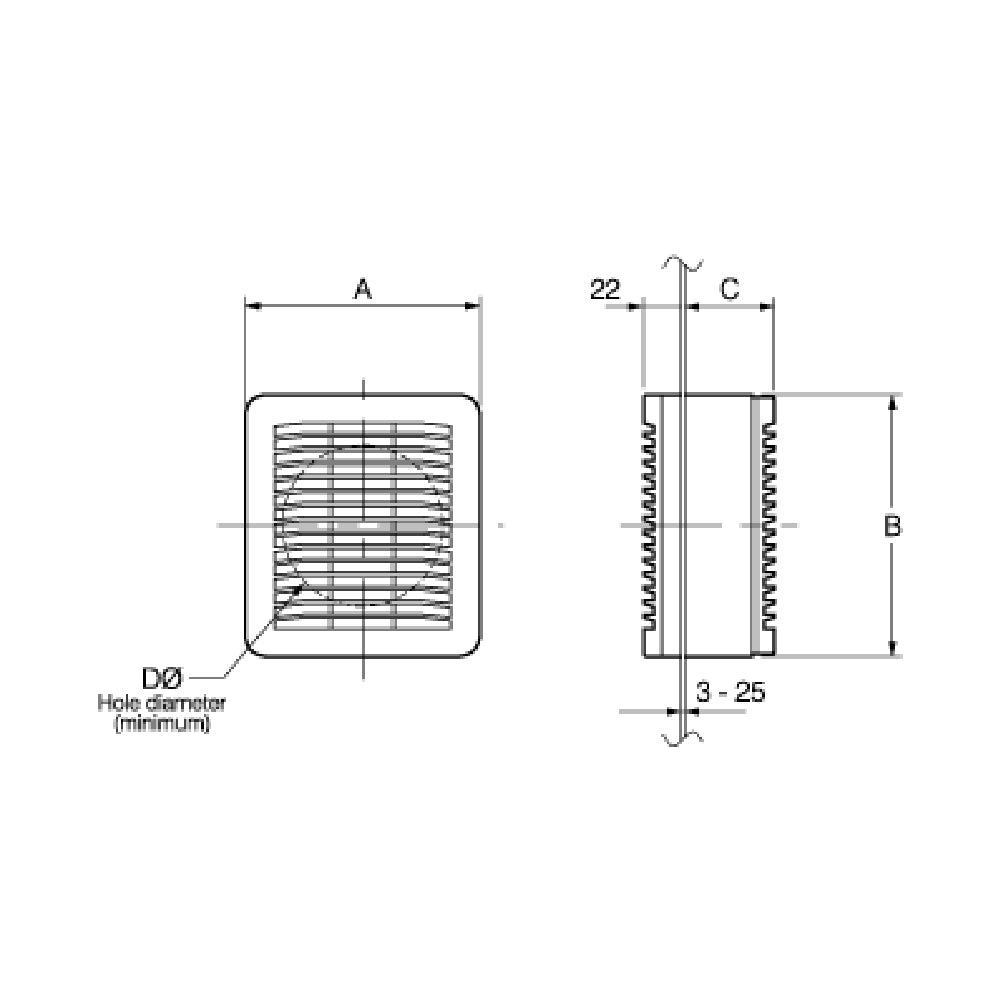

Dimensions:
- Width: 230 mm
- Projection: 22 mm
- Depth: 109 mm
- Height: 251 mm
Brand & Design:
- Brand: Fantech Trade
- Collection: Stylvent Series
- SKU: HV-150AE
Warranty:
- 1-year replacement warranty
