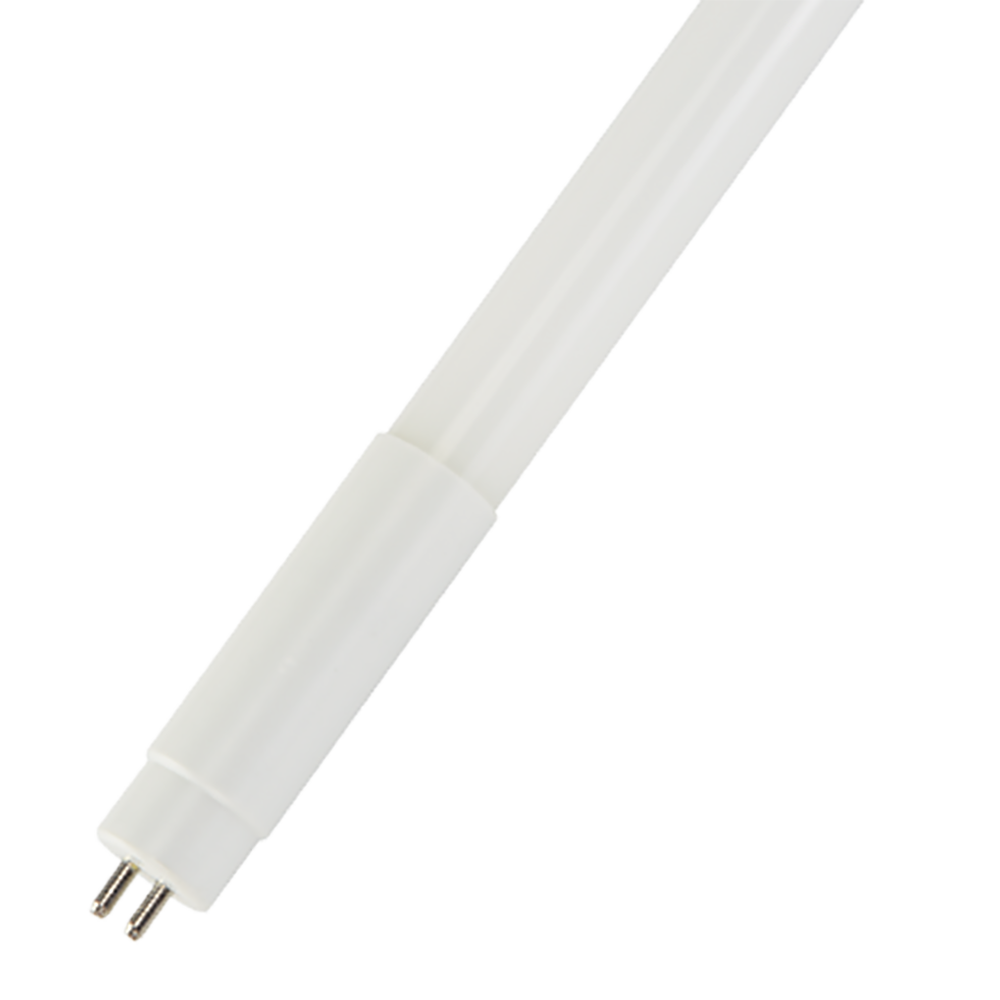

SupValue T5 PLC LED Tube G5 7.5W 240V 4000K - 363044
Precio regular
€27.60
Precio de venta
€27.60
Precio regular
€0.00
Generar código QR
-
¡Envío gratis en pedidos superiores a $60!
Descripción del Producto
Reseñas de productos
Product Description
Product Features:
- Energy efficient alternative to fluorescent tubes
- Opal glass diffuser
- Fixed G13 cap
- Single end power input
- Fuse is included
Technical Details:
- Operation Voltage: 240V
- Wattage: 7.5W
- Globe Base: G5
- Globe Included: Yes
- Colour Temperature: 4000K
- Lumens: 1100lm
- CRI: ≥80
- Beam Angle: 230°

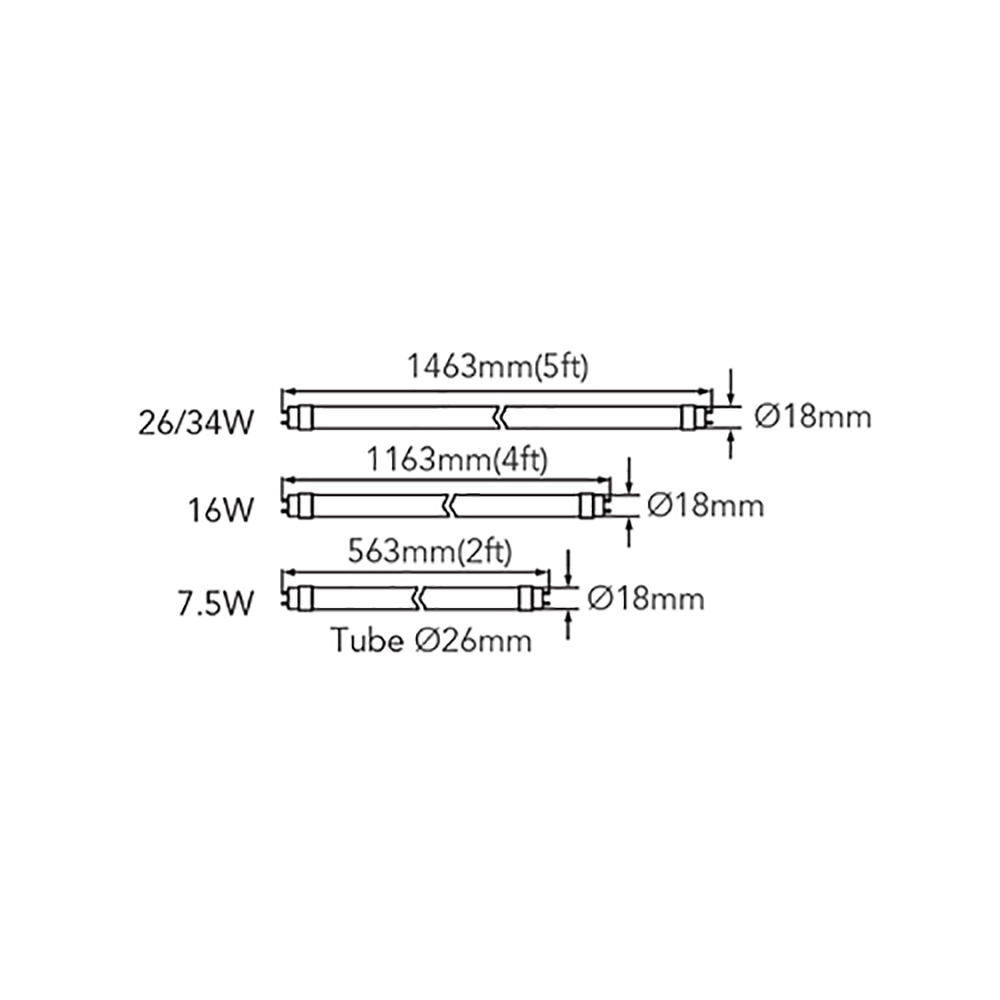

Dimensions:
- Width: 18 mm
- Length: 563 mm
Brand & Design:
- Brand: Energetic Lighting
- Collection: SupValue
- SKU: 363044
Warranty:
- 5-year replacement warranty
Installation Instructions To Be Retrofit By A Licenced Electrician (Wiring example of a single circuit luminaire with electronic ballast)
- Switch off power supply before re-wiring and installation. Never make contact with lamp, components, fixture when lamp, components, fixture are energized.
- Remove the conventional fluorescent tube.
- Remove the electronic ballast.
- Rewire the fixture as shown in the AFTER-RETROFIT circuit diagram and connect the included Bridge Fuse holder to the line wire in series, then fix the replacement Bridge Fuse into the Bridge Fuse holder.
- Check fluorescent socket for damage. If damaged, replace with one of the exact configuration and rating. Insert the Type A LED lamp into the lamp holder.
- Secure the position by turning the LED lamp by 90º.
- Switch on the power supply.
