Product Description

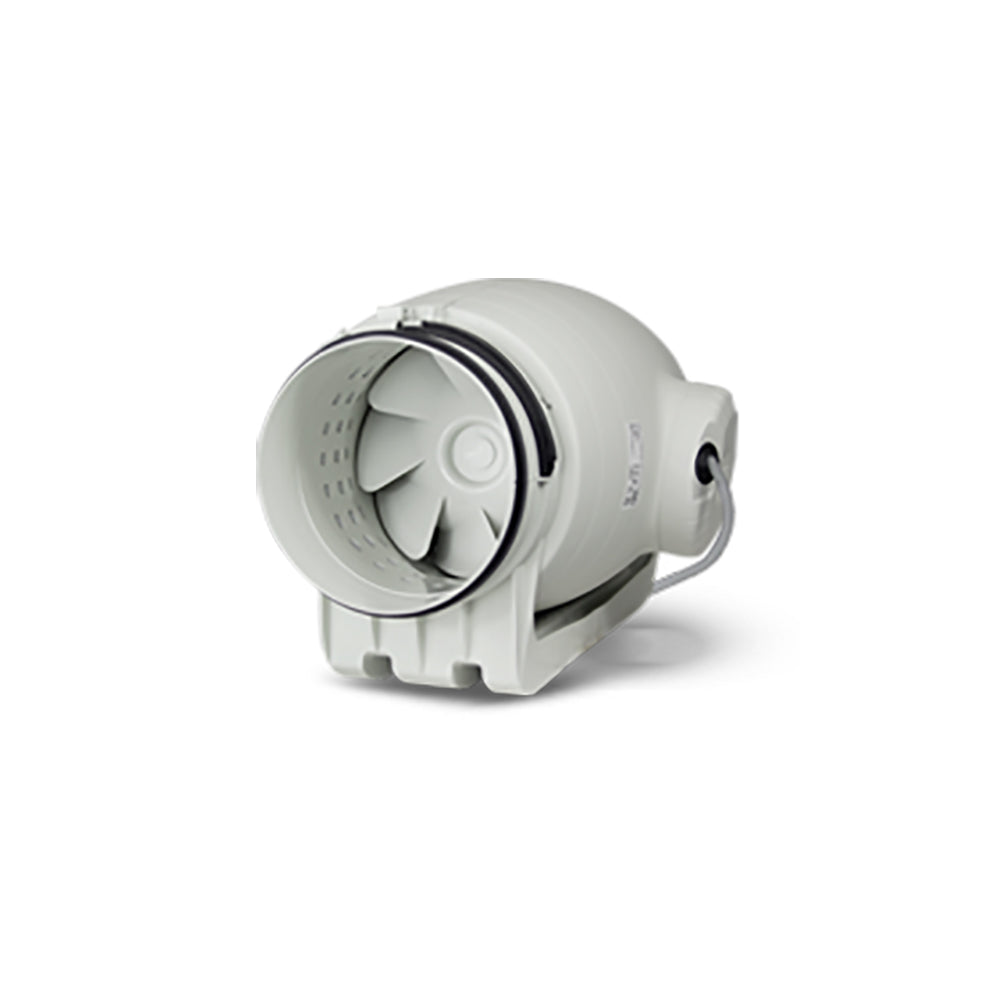

- The TD Silent Series of low-profile mixed-flow in-line fans incorporates a break-through in noise reduction resulting in units that operate very quietly.
- The low noise levels are achieved through the technically advanced design of the internal construction, which does not impede on the air flow performance of the fan.
- There are 6 models in the series, ranging from 100 to 315mm diameter spigot sizes.
Product Features:
- High performance mixed-flow impeller.
- Low noise operation.
- Vibration absorbing elements are integrated into the advanced body design.
- 360° rotating junction box makes connection of power cable easier (applicable for 100, 125, 150 and 200mm sizes only).
- Integral mounting foot makes installation more simple.
- 1 to 30 minute run-on timer available on 100 to 200mm models.
- Includes plug and lead for easy installation.
- Convenient 2-speed motor, factory set to high speed (single speed on models with run-on timer).
- Fan body can be easily removed without disturbing connected ductwork.
Technical Details:
- Operation Voltage: 240V
- Wattage: 44W / 50W
- Speed: 32 rps / 42 rps
- Motor Type: Standard models - 2-speed, squirrel cage induction motor
- Motor Electricity supply: 230V, single-phase, 50Hz
- Bearings: ball
- Maximum ambient temperature: 60°C
- IP Rating: IP44
- Usage: Outdoor

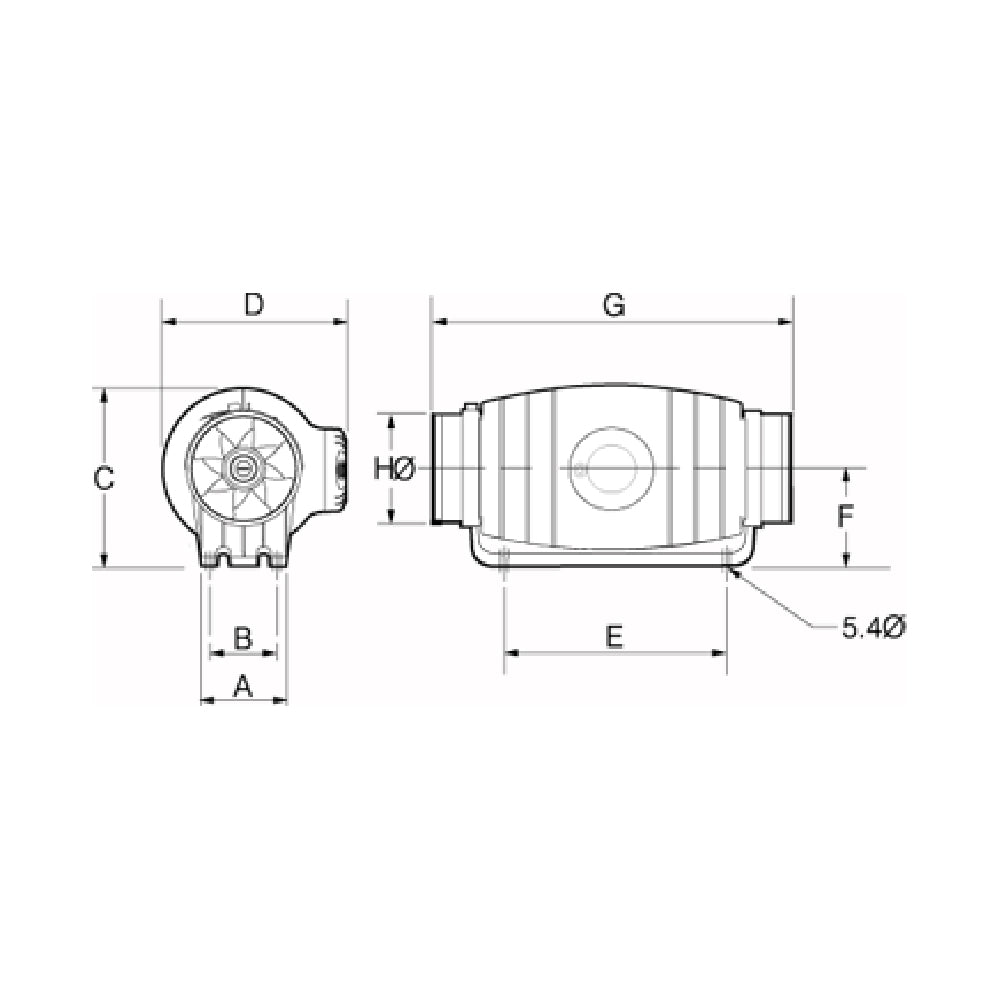

Dimensions:
- Width: 251 mm
- Length: 484 mm
- Height: 245 mm
- Base Width: 96 mm
Brand & Design:
- Brand: Fantech Trade
- Collection: TD Silent
- SKU: TD-500/150SIL
Warranty:
- 1-year replacement warranty
